Freelock Repair Guide
To give your safety shoes from Blåkläder even longer life, you can repair the lacing and locking system Freelock yourself. See instructions for doing so below
- Connect the wire.
- Cut the wire 10-12cm from the base.
- The dial-set consists of dial, reel, and cover.
- You now have two options for how to insert the thread into the dial: In the tongue position, penetrate the wire directly through the dial. OR, in the eyestay position, cross the wire first and penetrate through to the dial.
- Penetrate the wire through the holes, following numbers and arrow directions written on the reel.
- Put/push the wire to the end at position 3.
- Pull the wire no. 2 and no. 3 step by step to make the loop.
- Place the reel in the dial: CAUTION – THE WIRE SHOULD NOT BE TANGLED
- Position the cover above the dial. Assemble one side first and the other firmly.
- When assembling the cover, make sure the TOP sign is positioned upward and the direction is right.
- First, push the dial into two holes behind obliquely.
- Press the dial down firmly to the base part – MAKE SURE YOU HEAR A “CLICK” SOUND. Turn the dial clockwise to tighten the wire and push the dial upward to release the wire.

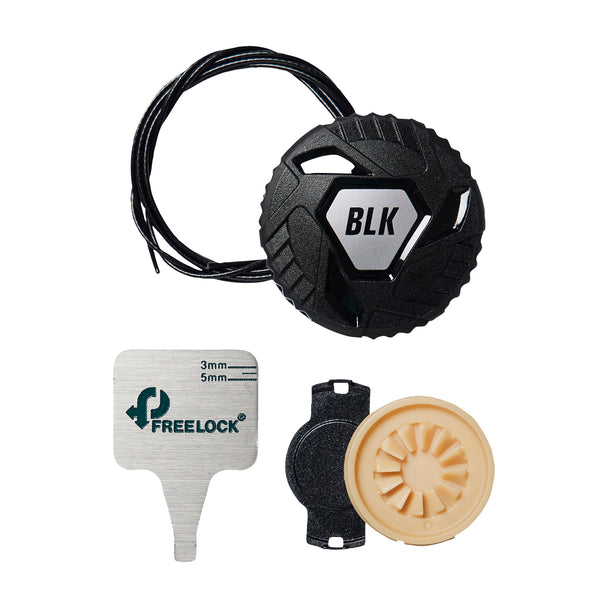

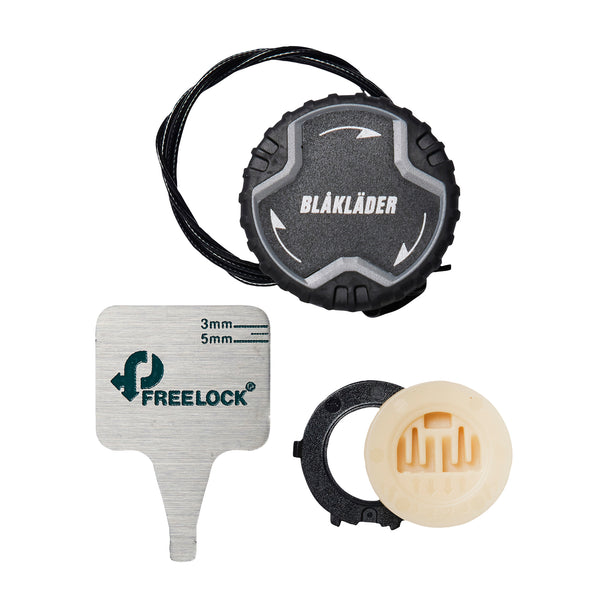

Get your Freelock Repair Kit now
